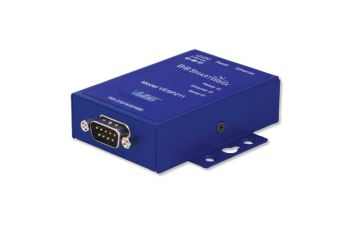

BB-VESP211
| SERIAL TECHNOLOGY | |
| RS-232 (DB9) | TD, RD, DTR, DSR, RTS, CTS, DCD plus Signal Ground |
| RS-485 2-Wire | Data A(-), Data B(+), GND |
| RS-422/485 4-Wire | TDA(-), TDB(+), RDA(-), RDB(+), GND |
| Serial Connector RS-422 | DB9M or Removable Terminal Blocks (RS-422/485 models) |
| Data Rate | Up to 230.4 Kbps |
| Power | |
| Source | Power Supply included |
| Input Voltage | 10 to 30 VDC |
| Connector | Power Connector 5.5 x 2.1 mm |
| Power Consumption | 2.5 Watts Max. |
| MECHANICAL | |
| LED Indicators | Serial Port, Ethernet, Ready LED's |
| Switches | Reset Button |
| Dimensions | VESP211 - 7.938 x 5.257 x 2.209 cm (3.125 x 2.070 x 0.870 in) |
| Enclosure | Metal, IP 30 |
| ENVIRONMENTAL | |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Operating Humidity | 10 to 95% Non-condensing |
| MTBF | 186,310 hours |
| MTBF Calculation Method | Parts Count Reliability Prediction |
| NETWORK | |
| Serial Memory | 8 KB per port |
| Network Memory | 4 KB |
| LAN | 10/100 Mbps Auto-detecting, 10BaseT or 100BaseTX |
| Ethernet | IEEE 802.3 auto detecting & auto MDI/MDI-X, 10BaseT and 100Base T |
| PROTOCOLS | |
| Protocols | TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP |
| IP Mode | Static, DHCP |
| TCP/UDP | User Definable |
| UDP | Unicast or Multicast |
| OTHER | |
| Connection Mode | Server, Client, VCOM, Paired |
| Client Connection | At power up or upon data arrival |
| Search | Serial direct COM and Ethernet Auto Search or specific IP |
| Diagnostics | Display PC IP, ping, test VCOM |
| Firmware Upgrade | Vlinx Manager |
| CONFIGURATION/SOFTWARE | |
| Vlinx Manager | Windows XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 Server (32/64 bit), Windows 7 (32/64 bit) |
| REGULATORY / CERTIFICATIONS / SAFETY | |
| Compliance | FCC Part 15 Class A, CE |
| EMC | Industrial-Hardened, 15,000 volt-protected, 61000-6-2 certified switch |
| UL | 60950 |
