Producent: MEAN WELL
- Universal AC input / Full range
- Low profile: 26mm
- High efficiency up to 92%
- Built-in active PFC function
- Fanless design, cooling by free air convection
- Protections: Short circuit / Overload / Over voltage
/ Over temperature - Output voltage adjustable: DIP switch
- Redundant function(R Type)
- Operating altitude up to 5000 meters (Note 9)
- Conformal coating
- LED indicator for power on
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Na zamówienie
Darmowa dostawa
Promocja cenowa na model HDR-15-5
Produkt przeznaczony wyłącznie do zastosowań profesjonalnych
UDP-400
Opis

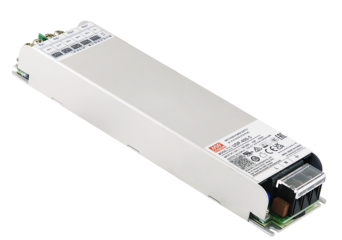

The UDP-400 series is a 400W LED display power solution. The ultra-low-profile design allows the sign module to be slim in height and weight. It greatly simplifies the delivery and installation processes. Thanks to its high efficiency and energy-saving performance, the series delivers effective energy savings. It is suitable for LED signage displays, moving signs, LED channel letters, LED TV walls, etc.
Specyfikacja
- MEAN WELL UDP-400 - Low output voltage power supply 336~400W power
| Model | Wyjście | Tolerancja | Regulacja | Moc | Sprawność | Wymiary |
| UDP-400 -4.2 | 4.2V, 80A | ±2.0% | 3.8~4.2V | 336W | 90.5% | 200x50x26mm |
| UDP-400 -4.6 | 4.6V, 80A | ±2.0% | 4.2~4.6V | 368W | 91% | 200x50x26mm |
| UDP-400 -5 | 5V, 80A | ±2.0% | 4.6~5.0V | 400W | 92% | 200x50x26mm |
