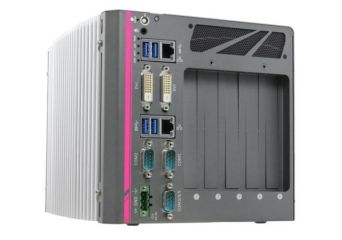

Nuvo-6032
Komputer PC z rozszerzeniem Intel® Core ™ i7 / i5 szóstej generacji z maksymalnie 5 gniazdami PCIe / PCI
- Supports 6th-Gen Intel® Core™ i7/i5/i3, Pentium and Celeron® LGA1151 CPU
- Up to five expansion slots- x16 PCIe, x8 PCIe and three PCI slots
- Rugged, -25 °C to 60 °C fanless operation
- 2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
- Dual DVI display outputs
- Up to 3x 2.5" SATA accommodation and 1x mSATA socket
- Wall-mounting, DIN-rail mounting and rack-mounting available
- Automatic temperature sensing and fan control (optional)
Darmowa dostawa
Promocja cenowa na model HDR-15-5
Produkt przeznaczony wyłącznie do zastosowań profesjonalnych
Nuvo-6032
Opis
Nuvo-6032 series is the perfect replacement of your bulky rack-mount or wall-mount IPC systems. Leveraging 6th-Gen Intel® Skylake platform, It delivers the same computing power as traditional IPCs, but in a more compact form-factor and fanless operation.
Nuvo-6032 series supports LGA1151 socket-type CPU, thus you can choose from Core™ i7 to Celeron® depending on your performance and cost consideration. Its 5-slot capacity gives the same level of expandability as most IPCs. The front-accessible I/O design, including 2 GbE, 4 USB 3.1 Gen1 and 5 COM ports, makes it easier to access your Nuvo-6032 when it's placed inside a cabinet or a rack.
Neousys' proven fanless design on Nuvo-6032 presents extraordinary reliability in all circumstances. And its versatile mounting options make it fit for desktop, cabinet or a 19" rack. With similar performance and cost, better form-factor and reliability, Nuvo-6032 series is speaking for itself on the new horizon of industrial embedded computer.
Specyfikacja
| Processor | Supports 6th-Gen Intel® Core™, Pentium® and Celeron® LGA1151 CPU Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP) Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP) |
|---|---|
| Chipset | Intel® H110 Platform Controller Hub |
| Graphic | Integrated Intel® HD 530/510 Controller |
| Memory | Up to 16 GB DDR4-2133 SODIMM |
| AMT | N/A |
| TPM | N/A |
| Ethernet | 1x Gigabit Ethernet Intel® I219-LM 1x Gigabit Ethernet Intel® I210-IT |
| POE+ | Opcionalne IEEE 802.3at PoE+ PSE dla Portów od 3 do 6, 100 W |
| USB | 4x USB 3.1 Gen2 (10 Gbps) 4x USB 3.1 Gen1 (5 Gbps) |
| Displays | 1x VGA , 1920 x 1200 |
| Serial Ports | 2x RS-232/422/485 3x RS-232 |
| Audio | 1x 3.5 mm jack dla mic-in i speaker-out |
| PCI/PCI Express |
1x PCIe x16 slot @ Gen3, 16-lanes 3x 33MHz/32-bit PCI (Nuvo-6032) |
| Mini PCI-E | N/A |
| M.2 | N/A |
| Expandable I/O | N/A |
| SATA HDD | 3x SATA ports for 2.5" HDD/SSD |
| M.2 | N/A |
| mSATA | 1x full-size mSATA |
| DC Input | 1x 8 V do 35 V DC |
| Zdalne sterowanie & Wyjście LED | 1x 3 PWR LED |
| Wymiary | 184 mm (W) x 225 mm (D) x 174 mm (H) |
| Waga | 3.5 Kg |
| Montaż | Wall, DIN |
| Temperatura pracy | -25°C ~ 60°C */** |
| Temperatura przechowywania | -40°C ~ 85°C |
| Wilgotność | 10% ~ 90% , Non-condensing |
| Wibracje | IEC60068-2-64 |
| Wstrząsy | IEC60068-2-27 |
| EMC | CE/FCC Class A, wedługEN 55032 & EN 55024 |
* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
** For sub-zero operating temperature, a wide temperature range HDD drive or Solid State Disk (SSD) is required.
