AB4080 Anybus-S Modbus Plus
Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
---|---|---|---|---|---|---|
AB4080 S-Modbus Plus | Na zamówienie | Gwarancja: | 0,00 zł - | - |

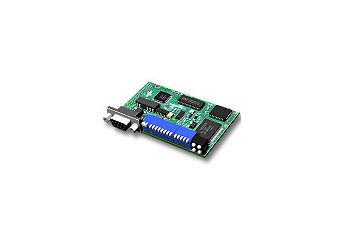

The Anybus-S Modbus Plus module is a small interface card that can be read and written from another Modbus Plus device or controller. The maximum amount of data that can be handled by the module is 2kbytes of input data and 2kbytes of output data. The module is connected via the application connector. Via this connector the application receives and instant connection to the Modbus Plus network. The Anybus-S Modbus Plus module supports global database transaction. The dynamic mailbox interface also provides the possibility to set the node ID, set the source ID (for global data) and also get/clear the network statistics
Wymiary: | 54 mm x 86 mm x 15 mm |
Napięcie zasilania: | +5V max 250mA |
Temperatura pracy: | 0 to +70°C |
Baud Rate:b | 1 Mbit/s |
I/O Input: | Max 1025 Word |
I/O Output: | Max 1025 Word |
Interfejs urządzenia: | Równoległy |
