AB7301

AB7301 CANopen Master - Profibus Slave

Producent: Anybus
Producent: Anybus

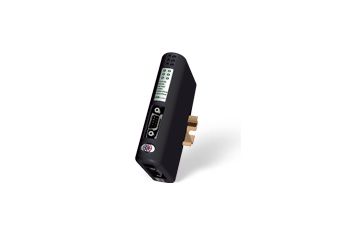

AB7301 CANopen Master - Profibus Slave

  • CANopen implementation according to the CANopen specification DS301 v4.0.2.
  • Network Management (NMT) messages, to configure and initialize the network.
  • Supporting 128 Receive PDOs and 128 Transmit PDOs, each can transfer up to 8 bytes.
  • PDO message types: COS (Change of State), Cyclic Synchronous, Acyclic Synchronous.
  • Service Data Objects (SDO) is used to access all entries of a CANopen object dictionary.
  • Synchronization Object (SYNC) is used for synchronizing PDO communication.
  • Heartbeat Mechanism to monitor the status of nodes.
  • Node Guarding/Life Guarding Protocol provides possibility to guard slaves or the master.
  • EMCY (Emergency Object) is used for error reporting.
  • LSS master functionality.
  • Slim housing with standard DIN rail mounting.
  • Complete Profibus DP and DPV1 (Class1/Class2) slave functionality according to IEC 61158.
  • Automatic baud rate detection on Profibus (9600 bit/s - 12 Mbit/s).
  • CANopen configuration by using an external CANopen Configuration Manager
Cena od 4 186,00 zł netto

Wysoka cena? Zaloguj się i kupuj taniej

Na zamówienie

Darmowa dostawa od 500 zł

Pokaż 1 model

Promocja cenowa na model HDR-15-5

Modele

Opis

The Anybus X-gateway copies I/O-data in both directions thus enabling data exchange between the two networks. Default I/O configuration is 16 bytes Input and 16 bytes Output, two bytes in each direction is used for the Control word and the Status word. Changing default settings is very simple by changing the Fieldbus parameters from the CANopen configuration tool. An external CANopen configuration tool is used to configure the nodes on the CANopen network. The resulting Concise DCF file is downloaded to the CANopen network master using a CANopen adapter. Embedded into a small plastic housing, the CANopen X-gateway is a slim device for standard DIN rail mounting.

The CANopen master (manager) can connect up to 126 slaves and complies with the CANopen communication profile DS301 v4.0.2. The X-gateway supports the different CANopen functionalities as Heartbeat, Nodeguarding, Sync and Emcy. 128 Receive and 128 Transmit PDOs are available to be used, each PDO can transfer up to 8 bytes.

The Profibus DPV1 I&M slave interface is implemented according to the standard IEC61158 as a modular slave, supporting all standard functionality such as Sync, Freeze and diagnostics. Standard DP as well as DPV1 acyclic data services (Class1/Class2) are supported. The Profibus interface module is certified by the Profibus user organization and has proven conformance and interoperability with leading PLC´s, HMI´s etc. Profibus address is set via rotary switches 0-99.

Specyfikacja

  • Dane techniczne
Size: 127 mm x 75 mm x 27 mm
Power Supply: 24 VDC
Temperature: -25-55°C
Current Consump: max 150 mA
Baud Rate: 20 kbit/s - 1 Mbit/s, Auto baud rate detection
I/O Input: 510 bytes
I/O Output: 510 bytes
Config Method: External CANopen Configuration Manager (CCM)
Profibus baud rate: 9,6 kbit/s-12Mbit/s
Profibus address: Node address 0-99
USB-CAN dongle: 021370 (order code for USB to CAN dongle incl. CD with CCM software and manuals)
Order Code: AB7301
