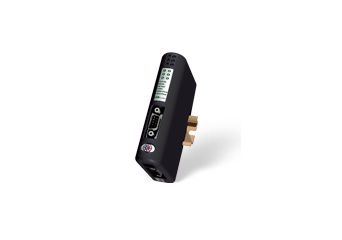

| AB7302 CANopen Master - DeviceNet Slave | Na zamówienie | Gwarancja: | 5 127,00 zł 6 306,21 zł | Zaloguj się, aby poznać swoją cenę |
The Anybus X-gateway copies I/O-data in both directions thus enabling data exchange between the two networks. Default I/O configuration is 16 bytes Input and 16 bytes Output, two bytes in each direction is used for the Control word and the Status word. Changing default settings is very simple by changing the Fieldbus parameters from the CANopen configuration tool. An external CANopen configuration tool is used to configure the nodes on the CANopen network. The resulting Concise DCF file is downloaded to the CANopen network master using a CANopen adapter. Embedded into a small plastic housing, the CANopen X-gateway is a slim device for standard DIN rail mounting.
The CANopen master (manager) can connect up to 126 slaves and complies with the CANopen communication profile DS301 v4.0.2. The X-gateway supports the different CANopen functionalities as Heartbeat, Nodeguarding, Sync and Emcy. 128 Receive and 128 Transmit PDOs are available to be used, each PDO can transfer up to 8 bytes.
The high performance DeviceNet Slave interface provides instant connectivity to the DeviceNet network. The module conforms to DeviceNet 2.0. The DeviceNet interface module is certified by the ODVA and has proven conformance and interoperability with leading PLC´s, HMI´s etc. Baud rate and MAC ID can be set via DIP switches.
| Size: | 127 mm x 75 mm x 27 mm |
| Power Supply: | 24 VDC |
| Temperature: | -25-55°C |
| Current Consump: | max 150 mA |
| Baud Rate: | 20 kbit/s - 1 Mbit/s, Auto baud rate detection |
| I/O Input: | 510 bytes |
| I/O Output: | 510 bytes |
| Config Method: | External CANopen Configuration Manager (CCM) |
| Certification: | Certified by CAN in Automation (CIA) |
| DeviceNet baud rate: | 125-500 kbit/s |
| USB-CAN dongle: | 021370 (order code for USB to CAN dongle incl. CD with CCM software and manuals) |
| Order Code: | AB7302 |
