Produkt przeznaczony wyłącznie do zastosowań profesjonalnych| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB9002 MTCP Master/Client - DeviceNet Slave | Na zamówienie | Gwarancja: | 4 018,00 zł 4 942,14 zł | Zaloguj się, aby poznać swoją cenę |
| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| 021520 Wall Mount option | W magazynie | Gwarancja: | 836,00 zł 1 028,28 zł | Zaloguj się, aby poznać swoją cenę |
| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| 021530 SD memory card (industrial grade) | Na zamówienie | Gwarancja: | 428,00 zł 526,44 zł | Zaloguj się, aby poznać swoją cenę |

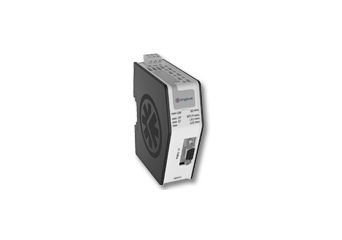

The new Anybus X-gateway Modbus-TCP series makes it possible to integrate Modbus-TCP devices into almost any other PLC system and their supported networks. The X-gateway provides Modbus-TCP server connectivity to all major fieldbus and industrial Ethernet networks. Get up and running quickly with easy setup made in just a few steps.
Modbus-TCP is used for communication between intelligent devices, sensors and instruments; to monitor field devices using PCs and HMIs. Typical industry usage includes: Factory Automation, Transportation, Infrastructure, Energy Distribution, Oil and Gas and Manufacturing.
It is an intelligent gateway platform, which provides one side of the gateway with a Modbus-TCP Client (Master) interface and any one of 9 different fieldbus/Ethernet Slave interfaces on the other side. It basically forwards I/O data from one network to the other and vice versa.
Configuration is made with a standard web-browser. An easy-to-use tool for TCP/IP configuration is also available, the Anybus IPconfig. The uplink fieldbus or Ethernet slave interface to the PLC is configured with a standard device description file (GSD/EDS) in the PLC engineering tool.
DeviceNet
With a broad range of devices supported, the Anybus X-gateway Modbus-TCP for DeviceNet provides the user with one of the most comprehensive solutions for solving DeviceNet to Modbus-TCP connectivity. In order to optimize the user experience, HMS provides free worldwide technical support for all of its products.
| Size: | 110 mm x 35 mm x 101 mm |
| Power Supply: | 24VDC (-15% +20%) |
| Temperature: | -25 to +70°C |
| Current Consump: | typical 150 mA |
| DeviceNet baud rate: | 125 kbit/s to 500 kbit/s (auto detect) |
| Modbus-TCP baud rate: | 10 Mbit/s and 100 Mbit/s (auto detect) |
| Wall Mount Bracket: | Order number 021520-B |
| SD-card: | Order number 021530-B (industrial grade) |
| Product availability: | May 2011 |
| Order Code: | AB9002 |
