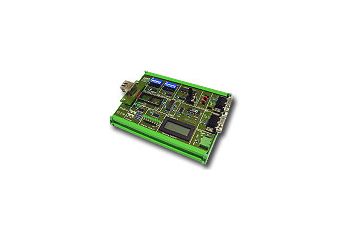

The Anybus-IC EVB is intended for evaluation of the Anybus-IC modules . With the EVB it is possible to initialise the module and monitor the data exchange directly from a terminal program on a PC. The EVB is complete with all hardware to be able to set adress, baudrate and monitor the fieldbus status LEDs. It is also possible to read out ( 2 bytes ) and set data ( 2 bytes ) to the fieldbus master directly on the board . On the board, the SCI channel can be connected via the RS232 interface, for direct accces from a PC. Serial cabling are included in the kit for the SCI channel and the monitoring channel. Also included in the Anybus-IC EVB: Manuals for the ABIC modules and an easy startup manual for the EVB. Example software Example schematics of carrier board for the AnyBus-IC.
