ABC4013 PROFINET IO-Device - EtherNet/IP slave
Anybus-S CC-Link
Wysoka cena? Zaloguj się i kupuj taniej
Darmowa dostawa od 500 zł
Promocja cenowa na model HDR-15-5
Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
---|---|---|---|---|---|---|
AB4210 SC-Link | Na zamówienie | Gwarancja: | 1 853,00 zł 2 279,19 zł | Zaloguj się, aby poznać swoją cenę |

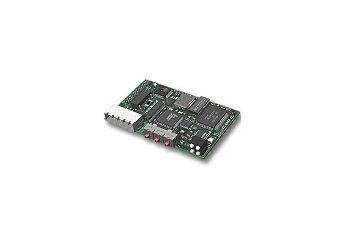

The Anybus-S module for CC-link is available with a 2 kByte Parallel Dual Port Ram interface. The module can be initialized with any of the profiles that are supported with a Remote Device Unit. The CC-Link address and baudrate can be selected via switches on the front side of the module or by software via the application interface. An DC/DC converter provides a galvanically isolated fieldbus interface. When used in standard mode the module support CC-Link version 1, but can during initialisation be configured for CC-Link version 2 functionality.
Wymiary: | 54 mm x 86 mm x 15 mm |
Napięcie zasilania: | +5V max 300mA |
Temperatura pracy: | 0 to +70°C |
Baud Rate:b | 156 kbit/s - 10 Mbit/s |
I/O Input: | 128 I/O bit |
I/O Output: | 128 I/O bit |
Metoda konfiguracji | Przełączniki lub z urządzenia |
Interfejs urządzenia: | Równoległy |
