Anybus-S EtherCAT
Wysoka cena? Zaloguj się i kupuj taniej
Darmowa dostawa
Promocja cenowa na model HDR-15-5
Produkt przeznaczony wyłącznie do zastosowań profesjonalnych| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB4455 S-Ethercat | Na zamówienie | Gwarancja: | 2 674,00 zł 3 289,02 zł | Zaloguj się, aby poznać swoją cenę |
| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB8032 SDP-EtherCAT | Na zamówienie | Gwarancja: | 0,00 zł - | - |

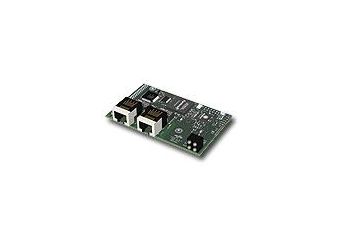

The Anybus-S EtherCAT module incorporates a powerful EtherCAT Slave interface providing instant connectivity to the EtherCAT network. The 100 Mbit/s EtherCAT interface uses 2 standard RJ45 connectors. It supports a simple low cost line structure, a tree structure, daisy chaining or drop lines - no expensive infrastructure components are required. The EtherCAT protocol is based on the standard IEEE 802.3 layers according to ISO/OSI. The module physical layer is 100BASE-X. The communication profile is the CANOpen adapter device profile using SDO´s and PDO´s for data communication. The Dual-Port RAM based hardware and software interface for the Ethercat module is standardised and identical in functionality with all the other Anybus-S modules.
| Wymiary: | 54 mm x 86 mm x 15 mm |
| Napięcie zasilania: | +5V max 450mA |
| Temperatura pracy: | 0 to +70°C |
| Baud Rate:b | 100Mbit |
| I/O Input: | Max 512 |
| I/O Output: | Max 512 |
| Interfejs urządzenia: | Równoległy |
