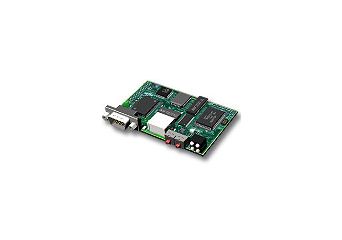

Anybus-S FIPIO
Darmowa dostawa
Promocja cenowa na model HDR-15-5
Produkt przeznaczony wyłącznie do zastosowań profesjonalnych| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB4218 SIPIO | Na zamówienie | Gwarancja: | 0,00 zł - | - |
The Anybus-S module for FIPIO is available with a 2 kByte Parallel Dual Port Ram interface. The module supports all FIPIO profiles and classes. FIPIO station adress can be selected via switches on the front side of the module or by software via the application interface. A transformer connection on the module provides a isolated fieldbus interface. A FIPIO network can consist of up to 255 different modules. Each segment of the bus can handle 32 modules. The total amount of IO data (cyclic data) for one FIPIO module are maximum 64 bytes output and maximum 64 bytes input.
| Wymiary: | 54 mm x 86 mm x 15 mm |
| Napięcie zasilania: | +5V max 260mA |
| Temperatura pracy: | 0 to +70°C |
| Baud Rate:b | 1 Mbit/s |
| I/O Input: | 64 bytes |
| I/O Output: | 64 bytes |
| Metoda konfiguracji | Via DIP switches or from application interface |
| Interfejs urządzenia: | Równoległy |
