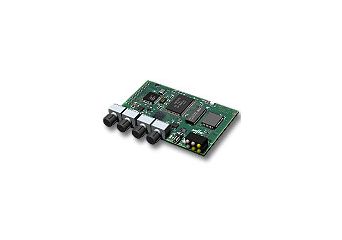

Anybus-S Interbus Fiber Optic
Darmowa dostawa
Promocja cenowa na model HDR-15-5
Produkt przeznaczony wyłącznie do zastosowań profesjonalnych| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB4293 S-Interbus Fiber Optic | Na zamówienie | Gwarancja: | 0,00 zł - | - |
The New Anybus-S 2MBit/s interface with a Fiber Optic bus-interface for Interbus is an important complement to the standard module for copper based cabling. The Fiber Optic module is based on the OPC chipset from Pheonix, which gives support for optical diagnostics. This means the Anybus-S unit has a high EMC immunity and also a very low EMC emission. The fibre optic module is fully compatible to the rest of the AnyBus-S family in its data exchange and other properties.
| Wymiary: | 54 mm x 86 mm x 15 mm |
| Napięcie zasilania: | +5V max 400mA |
| Temperatura pracy: | 0 to +70°C |
| Baud Rate:b | 500kbit/s - 2Mbit/s |
| I/O Input: | Max 20 byte |
| I/O Output: | Max 20 byte |
| Interfejs urządzenia: | Równoległy |
| Dane parametrów: | PCP V.2.0 |
