Anybus-S Lonworks
Darmowa dostawa
Promocja cenowa na model HDR-15-5
Produkt przeznaczony wyłącznie do zastosowań profesjonalnych| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB4079 S-LonWorks | Na zamówienie | Gwarancja: | 0,00 zł - | - |
| Model | Dostępność | Gwarancja | Schowek | Twoja cena | Twoja cena | Ilość produktów Dodaj |
|---|---|---|---|---|---|---|
| AB8006 SDP-LonWorks | Na zamówienie | Gwarancja: | 0,00 zł - | - |

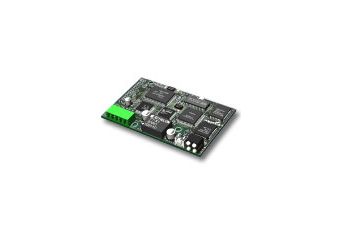

The Anybus-S LonWorks is a high performance credit card sized application interface to LonWorks networks. The interface supports LonMark objects handling and self installation as well as standard installation. The required network variables on the LonWorks side can be configured for each and stored in FLASH. It is based on MIP that allows high throughput and a configurable set of up to 256 input and 256 output network variables. The interface can, via the "LWtool" PC-based configuration utility program, link, and convert data between the host application and devices located on a LonWorks Network. The LonWorks side of the product can be configured for any type of network variable like, SNVT's or custom types.
| Wymiary: | 54 mm x 86 mm x 15 mm |
| Napięcie zasilania: | +5V max 450mA |
| Temperatura pracy: | 0 to +70°C |
| Baud Rate:b | 78 kbit/s |
| I/O Input: | 512 bytes |
| I/O Output: | 512 bytes |
| Metoda konfiguracji | XIF file download customer specific supplied with module, Special LW Config Tool available for Network Setup |
| Interfejs urządzenia: | Równoległy |
