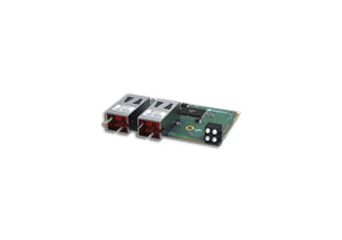

Anybus-S Profinet-IRT Fiber Optic

The embedded Anybus-S PROFINET interface is a complete PROFINET solution for a PROFINET IO device with IRT. All analog and digital components that are needed for a complete PROFINET IO interface with Isochronous-real time (IRT) are mounted on the module. The module is based on the Siemens PROFINET IO software technology for IRT and uses the Ertec 200 ASIC, providing integrated switch functionality. The module provides two SC-RJ Fibre Optic connectors and allows installations in line or ring topology. The interface to the electronics of the automation device is based on a 2k Dualport RAM. This interface is standardized in hardware and software and identical in functionality with all other Anybus-S modules. PROFINET Functions: The PROFINET module works as a I/O-Device on the PROFINET network. The module support up to 220 bytes of IO for both Input and Output data. The module baud rate is 100Mbit/s (full duplex). Four LEDs will continuously indicate the actual PROFINET status and eventually error messages. The module also supports the normal PROFINET Alarm functionality. The module complies PROFINET conformance Class C. IT-Functions: The PROFINET IO module also support functions like Webserver and FTP functions. The IT functions can be used simultaneously with the PROFINET communication.
