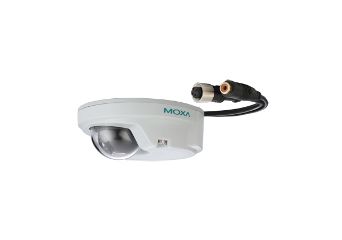

VPort P06-1MP-M12
VPort P06-1MP-M12 jest kompaktową kamerą zaprojektowaną do instalacji monitoringu pokładowego w tramwajach i pociągach. Jest to urządzenie zgodne z normą EN50155 oraz EN50121-3-2. Umożliwia jednoczesne kodowanie materiału video do trzech strumieni (2x H.264 oraz 1x MJPEG). Kamera może pracować w temperaturze od -25 do 55 stopni Celsjusz (wersja standardowa) bądź od -40 do 70 st. C (wersja rozszerzona. Matryca urządzenia (1/2.7" CMOS) pozwala rejestrować obraz w rozdzielczości maksymalnej 1280x800, natomiast obudowa posiada stopień ochrony IP66. Kamera wyposażona jest również w zakręcane złącze M12 (większa niezawodność w warunkach drgań i wstrząsów) oraz jest zasilana poprzez technologię Power over Ethernet (PoE).
Sensor | 1/2.7" HD progressive scan CMOS |
Lens | 3.6, 4.2, 6 mm fixed focal length |
Angle of View (Diagonal) |
3.0 mm / F2.0: 120° 3.6 mm, F1.6: Diagonal 160°, Horizontal 100°, Vertical 71° 4.2 mm, F1.8: Diagonal 97°, Horizontal 80°, Vertical 58° 6.0 mm, F1.8: Diagonal 83°, Horizontal 65°, Vertical 51° |
Modulation | NTSC or PAL |
Camera Angle | Pan: ?30°; Tilt: 0-90°, Rotate: ?180° |
Illumination (low light sensitvity) | 0.2 Lux at F=1.2 |
Synchronization | Internal |
White Balance | ATW/AWB (range: 3200 to 10000°K) |
Auto Electronic Shutter | 1/30 to 1/25000 sec |
Electronic Shutter | Auto |
S/N Ratio | 50 dB (Gamma, Aperture, AGC, OFF; DNR ON) |
DNR | Built-in DNR |
WDR/b> | Level 1-8 |
AGC control | 2X, 4X, 8X, 16X, 32X, 64X |
Flickerless Control | Automatic/50 Hz/60 Hz mode |
Black Level Control | High/Medium/Low |
Auto Exposure | Level ?5 |
Image Rotation | Flip, Mirror, and 180° rotation |
Image Setting |
Manual tuning with saturation, sharpness, and contrast |
Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG | |
Video Outputs | Via Ethernet port | |
Video Streams | Maximum of 3 video streams Stream 1: H.264, 1280 x 800 resolution (max.) Stream 2: H.264, 720 x 576 resolution (max.) Stream 3: MJPEG, 720 x 576 resolution (max.) |
|
Video Resolution and FPS (frames per second) | ||
Video Viewing |
3 privacy mask areas configurable DynaStream? support for automatic adjustment of frame rate Adjustable image size and quality Timestamp and text overlay OSD (On screen Display) position adjustable Maximum of 5 simultaneous unicast connections |
Audio Inputs | 1, Line-in, rugged RCA connector |
Audio format | Mono, PCM (G.711) |
Protocols | TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS,IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67 |
Ethernet | 1 10/100BaseT(X) Ethernet port, 4-pin M12 A-code connector |
Input | Power-over-Ethernet (IEEE 802.3af) |
Housing | IP66 rain and dust protection, EN 62262 IK8 vandal-proof protection |
Dimensions | 110 mm (diameter) x 47 mm (height) |
Weight |
310 g |
Installation | Surface mounting |
Password | User level password protection |
Filtering | By IP address |
Encryption | HTTPS, SSH |
Intelligent Video | Tamper alarm |
Video Motion Detection | 3 independently configurable motion areas |
Scheduling | Daily repeat timing schedule |
Imaging | JPEG snapshots for pre/trigger/post alarm images |
Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
Custom Alarms | HTTP event servers for setting customized alarm actions |
Pre-alarm Buffer | 12 MB video buffer for JPEG snapshot images |
Operating Temperature |
Standard model: -25 to 55°C Wide temp. model: -40 to 75°C |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Conformal Coating | Available on request |
Safety | UL 60950-1 |
EMI | FCC Part 15, CISPR (EN 55022) class A |
EMS | EN61000-4-2 (ESD), level 3 EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3 EN61000-4-5 (Surge), level 3 EN61000-4-6 (CS), level 3 EN 61000-4-8, EN61000-4-11 |
Rolling Stock | EN 50155:2007 compliance (shock, vibration, temperature, EMC) |
Shock | IEC 61373 |
Freefall | IEC60068-2-32 |
Vibration | IEC 61373 |
Wandal resistance | EN 62262, IK8 level |
CPU | Pentium 4, 2.4 GHz |
Memory | 512 MB of memory |
OS | Windows XP/2000 with SP4 or above, Windows Vista, Windows 7 |
Bowser | Internet Explorer 6.x or above |
Multimedia | DirectX 9.0c or above |
VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (latest version available on Moxa website) |
Standard | ONVIF |
