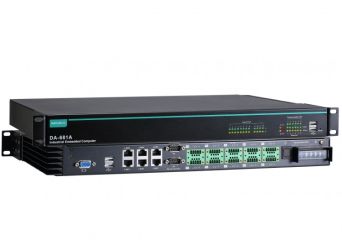

DA-681A

IEC 61850-3, IEEE 1613, IEC 60255, x86, szafa rack 1U 19", Intel® Core™ Celeron 1047UE 1.4GHz CPU, 2x RS-232/422/485 10x RS-485, 6x LAN, VGA, mSATA, USB

  • Zgodność z IEC 61850-3, IEEE 1613, IEC 60255  (tylko modele DPP i DPP-T)
  • Procesor  Intel® Core™ Celeron 1047UE 1.4 GHz trzeciej generacji
  • 1x slot DDR3
  • 1x mSATA na system operacyjny i 1x SATA III do rozbudowy przestrzeni.
  • 6x gigabit Ethernet
  • 4x USB 2.0
  • 2x izolowane porty RS-232/422/485 oraz 10 izolowanych RS-485
  • Embedded Debian 8 Linux lub Windows 7 Embedded
  • Wspiera napięcia zasilające od 100 do 240 VAC oraz VDC (dostępne modele z pojedynczym lub podwójnym wejściem zas.)
  • Opcjonalny moduł IRIG-B dostępny dla modeliu "DPP" oraz "DPP-T"
Producent: Manufacturer Label
Brak w magazynie

Opis produktu

DA-681A to komputer z procesorem Intel® Core™ Celeron 1047UE 1.4 GHz (trzecia generacja) oparty na architekturze x86, domyślnie montowany w szafie RACK 19". Został on zaprojektowany do aplikacji kontroli, monitoringu, rejestracji danych, a także do konwersji protokołów.  Dzięki przemysłowej konstrukcji DA-681A sprawdza się w automatyce przemysłowej, energetyce, transporcie a także w przemyśle wydobywczym.

Komputer ten wyposażony jest w  szereg interfejsów takich jak: 1 x VGA, 4 x USB, 6x Gigabit LAN, 2x RS/232/422/485, oraz 10x RS-485. Dodatkowym atutem tego komputera jest slot na karty mini PCIe, umożliwiający rozszerzenie funkcji. Komputer można zamówić z zainstalowanym Linuxem lub bez systemu i pamięci. Na życzenie możemy zainstalować Windows 7 Embedded, większy dysk, czy większa ilość pamięci RAM.

Kolejną zaletą jest izolacja 2kV w portach szeregowych, co gwarantuje większą niezawodność komunikacji w ciężkich warunkach przemysłowych. Zgodność z EC 61850-3, IEEE 1613, oraz IEC 60255, a także mnogość interfejsów sprawia że komputer ten jest dedykowany dla  podstacji energetycznych.

Specyfikacja techniczna

• Computer
CPU 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz
OS Linux Debian 8 (pre-installed)
Note: W7E available by CTOS
System Chipset Intel HM65
BIOS 64 Mbit Flash BIOS, PCI Plug & Play, ACPI
System Memory 8 GB capacity, 2 GB for Linux pre-installed; 1 slot of DDR3-1066/1333 SO-DIMM SDRAM
Expansion Bus PCI/104 onboard (DPP models only)
USB USB 2.0 hosts x 4, Type A connector, supports system boot up
• Storage
Built-in 8 GB for Linux (pre-installed in mSATA)
Storage Expansion SATA 3.0 interface
• Display
Graphics Controller Intel® HD Graphics (Integrated)
Display Memory Dynamic video memory (shares up to 32 MB of system memory)
Display Interface 1 VGA output (DB15 female connector)
Resolution CRT display mode with pixel resolution up to 2048 x 1536 at 75 Hz
• Ethernet Interface
LAN Auto-sensing 10/100/1000 Mbps ports x 6
Magnetic Isolation Protection 1.5 kV built-in
• Serial Interface
Serial Standards • 2 RS-232/422/485 ports (DB9 male)
• 10 RS-485 ports (terminal block)
ESD Protection 15 kV for all signals
Surge Protection 4 kV (DA-681A-I-DPP-T only)
Isolation 2 kV digital galvanic isolation
• Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Baudrate 50 bps to 115.2 kbps
• Serial Signals
RS-232 TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422 TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Data+, Data-, GND
• LEDs
System Power, Storage
LAN 100M x 6, 1000M x 6
Serial RS-232/422/485: 2 x Tx, 2 x Rx
RS-485: 10 x Tx, 10 x Rx
Programmable 6 LEDs
Power Failure LED x 2 (dual power models)
• Switches and Buttons
Power Button On/Off (on rear panel)
Reset Button Hard Reset (on front panel)
• Physical Characteristics
Housing SECC sheet metal (1 mm)
Weight 4.5 kg (10 lb)
Dimensions 440 x 315 x 45 mm (17.32 x 12.40 x 1.77 in), 19-inch 1U height
Mounting Standard 19-inch rackmount
• Environmental Limits
Operating Temperature SP Models: -25 to 55°C (-13 to 131°F)
DPP Models: -25 to 55°C (-13 to 131°F)
DPP-T Models: -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Anti-Vibration 7 mm (2-9 Hz), 20 m/s/s (9-200 Hz), 15 m/s/s (200-500 Hz) @ IEC-61850-3, IEC 60870-2-2/Cm/(3M6)/(4M6), sine wave, 2-500 Hz, 1 Oct/min, 10 cycles, 2 hrs 40 mins per axis
Anti-Shock 300 m/s2 @ IEC-61850-3, IEC 60870-2-2/Cm/(3M6)/(4M6), half sine wave, 11 ms
• Power Requirements
Input Voltage 100 to 240 VAC; 100 to 240 VDC
Input Current 0.80 A @ 100 VAC; 0.41 A @ 100 VDC
Power Consumption 25 W
• Standards and Certifications
Safety UL 60950-1, IEC 60950-1, EN 60950-1
Electrical Substation IEC 61850-3, IEEE 1613, IEC 60255
Protection Relay IEC 60255
EMC EN 61000-6-2/6-4
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
IEC 61000-4-11
For DPP models only:
IEC 61000-4-16: 30 V / 300 V
IEC 61000-4-17: 10% nominal DC voltage
IEC 61000-4-18:
100 kHz: 25K VCM; 1 kv DIM
1 MHz: 2.5 kV CM; 1 kV DM
IEC 61000-4-29: 30% reduction, 0.1 sec.
Green Product RoHS, CRoHS, WEEE
• Reliability
Alert Tools • Built-in buzzer and RTC (real-time clock) with battery lithium backup
• Built-in 1 relay for visual/audio alarm.
Automatic Reboot Trigger Built-in watchdog timer, configurable for restarts at 1 to 255 second intervals
• MTBF (mean time between failures)
Time DA-681A-I-SP: 240,784 hrs
DA-681A-I-DPP: 215,436 hrs
DA-681A-I-DPP-T: 215,436 hrs
Standard Telcordia (Bellcore) Standard TR/SR
• Warranty
Warranty Period 3 years
Details See www.moxa.com/warranty
Software Specifications
• Linux
OS Linux Debian 8, 64-bit
Terminal Server (SSH) Provides secure encrypted communications between two un-trusted hosts over an insecure network
Kernel Version GNU/Linux 3.16
System Shell DASH (default), BASH
File System EXT2, EXT3, EXT4
Internet Protocol Suite TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP,PAP,DHCP, NTP,NFS, SSH, PPP, SFTP, RSYNC, SSL
Programming Language Support PHP, Perl, Python
Internet Security Suite OpenVPN, iptables
Secure Shell for Remote Access SSH allows remote logins to a secure encrypted console from any connected network
Watchdog Features a hardware function to trigger system reset in a user specified time interval (Linux standard API)
• Windows Embedded Standard 7 (by CTOS)
Core OS • Windows 7 Embedded, 32-bit/64-bit
• Sensor and Location Platform
• Remote Procedure Call
Applications and Services Development • .Net Framework 3.5
• Remote Desktop Protocol 7.1
• COM OLE Application Support
• COM+ Application Support
• MSMQ
Internet Services • Internet Explorer 8.0
• IIS 7.0
File Systems and Data Storage • Windows Data Access Components
• Windows Backup and Restore
Diagnostics • Common Diagnostic Tools
• Problem Reports and Solutions
Fonts • Chinese (Trad. and Simp.), Middle East, South East Asian, South Asian Fonts
• True Type Fonts
Graphics and Multimedia • MPEG DTV-DVD Audio Decoder (MPEG-2, AAC)
• MPEG Layer-3 Audio Codecs(MP3)
• MPEG4 Decoders
• Windows Media Video VC-1 (WMV) Codecs
• DirectX and Windows Device Experience
• Windows Media Player 12
Management • Group Policy Management
• Windows Management Instrument (WMI)
• Windows Update
Networking • Extensible Authentication Protocol (EAP)
• Internet Authentication Service
• Telnet Server
• Bluetooth
• Domain Services
• Network Access Protection
• Network and Sharing Center
• Quality of Service
• Remote Access Service (RAS)
• Telephony API Client
• Windows Firewall
• Wireless Networking
Security • Credential Roaming Service
• Credentials and Certificate Management
• Windows Authorization Manager (AZMAN)
• Windows Security Center
• Active Directory Rights Management
• Security Base
• Encrypted File System (EFS)
Embedded Features • Enhanced Write Filter (EWF)
• File-Based Write Filter (FBWF)
• Message Box Default Reply
• Registry Filter
• WSDAPI for .NET
Embedded Self-Health Diagnostics SNMP-based remote scripting layer for monitoring, reporting, and control
