VPort P16-1MP-M12

Przemysłowa kamera IP do systemów monitoringu w pojazdach

Producent: MOXA
Producent: MOXA
  • Kamera w wykonaniu przemysłowym, szeroki zakres temp. pracy od -25 do 55°C (bez żadnych wentylatorów)
  • Częściowa zgodność z normą EN50155 (T1 temperatura: -25 do 55°C; TX temperatura: -40 do 70°C)
  • Obudowa o stopniu ochrony IP66
  • matryca 1280 x 800 pikseli / 30 klatek/sek.
  • generowanie do 3 niezależnych strumieni video IP
  • funkcje poprawy obrazu DNR oraz WDR
Na zamówienie

Darmowa dostawa od 500 zł

Pokaż 9 modeli

Promocja cenowa na model HDR-15-5

Modele

Opis

VPort P16-1MP-M12 jest kompaktową kamerą zaprojektowaną do instalacji monitoringu pokładowego w tramwajach i pociągach. Jest to urządzenie (częściowo) zgodne z normą EN50155:2007. Umożliwia jednoczesne kodowanie materiału video do trzech strumieni (2x H.264 oraz 1x MJPEG). Kamera może pracować w temperaturze od -25 do 55 stopni Celsjusz. Matryca urządzenia pozwala rejestrować obraz w rozdzielczości maksymalnej 1200x800, natomiast obudowa posiada stopień ochrony IP66. Kamera wyposażona jest również w zakręcane złącze M12 (większa niezawodność w warunkach drgań i wstrząsów) oraz jest zasilana poprzez technologię Power over Ethernet (PoE).

Specyfikacja

  • Kamera
Sensor 1/2.7” HD progressive scan CMOS
Angle of View
3.6 mm, F1.6: Diagonal 120°, Horizontal 96°, Vertical 56°
8.0 mm, F1.8: Diagonal 48°, Horizontal 38°, Vertical 24°
Lens 3.6, 8 mm fixed focal length
Camera Angle Pan 350°, Tilt 80° (controlled manually)
Illumination (low light sensitvity) Color: 0.2 Lux @ F1.2
B/W:0.05Lux@F1.2
Synchronization Internal
White Balance ATW/AWC
Auto Electronic Shutter 1/30 to 1/25000 sec
S/N Ratio 50 dB (Gamma, Aperture, AGC, OFF; DNR ON)
DNR build-in
WDR Levels 1-8
AGC Control
2X, 4X, 8X, 16X, 32X, 64X
Flickerless Control Automatic/50 Hz/60 Hz
Black Level Control High/Medium/Low
Auto Exposure Level +/- 5
Image Rotation Flip, Mirror, and 180° rotation
Image Setting Manual tuning with saturation, sharpness, and contrast
  • Video



Video Compression H.264 (ISO/IEC 14496-10) or MJPEG
Video Outputs Via Ethernet port
Video Streams Maximum of 3 video streams

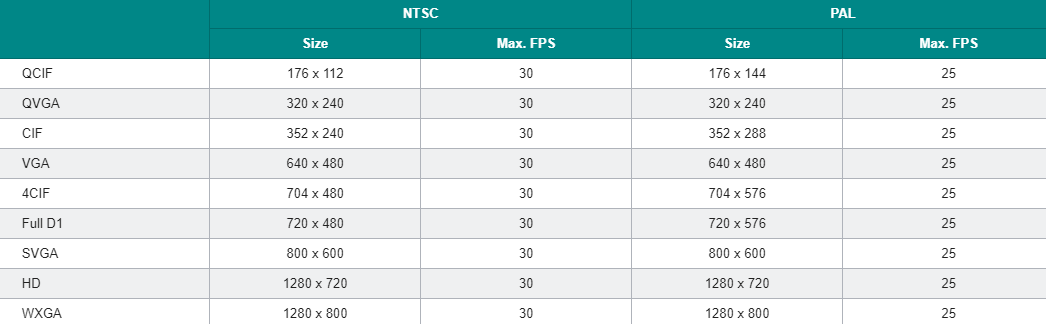

Video Resolution and FPS (frames per second)
Video Viewing CBR Pro™ for good image quality in limited bandwidth transmissions
DynaStream™ supported for automatic frame rate adjustment
Adjustable image size and quality
Timestamp and text overlay
OSD (On screen Display) position adjustable
Maximum of 5 simultaneous unicast connections
  • Network
Protocols TCP, UDP, HTTP, Multicast, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, SNMPv1/v2c/v3, DDNS, TFTP, OPT 66/67
Ethernet 1 10/100BaseT(X) Ethernet port, 4-pin M12 D-code female connector
  • Zasilanie
Input Power-over-Ethernet (IEEE 802.3af)
  • Obudowa i instalacja
Housing
Metal housing and dome cover with IP66 rain and dust
protection
Dehumidifying Membrane GORE protective vent
Dimensions 125 x 125 x 120.7 mm
Installation Surface (ceiling) or flush (recessed) mounting
  • Bezpieczeństwo
Password User level password protection
Filtering By IP address
Encryption HTTPS, SSH
  • Alarmy
Intelligent Video Camera tamper
Video Motion Detection 3 independently configurable areas
Video Loss Daily repeat timing schedule
Scheduling Daily repeat timing schedule
Imaging JPEG snapshots for pre/trigger/post alarm images
Custom Alarms HTTP event servers for setting customized alarm actions
Email/FTP Messaging Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm buffer

12 MB video buffer for JPEG snapshot images
  • Warunki środowiskowe
Operating Temperature Standard Models: -25 to 55°C
Wide Temp. Models: -40 to 70°C
Storage Temperature -40 to 85°C
Ambient Relative Humidity 5 to 95% (non-condensing)
Conformal Coating Available on request
  • Certyfikaty
Safety UL 60950-1
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN61000-4-2 (ESD), level 3
EN61000-4-3 (RS), level 3
EN61000-4-4 (EFT), level 3
EN61000-4-5 (Surge), level 3
EN61000-4-6 (CS), level 3
EN 61000-4-8,
EN61000-4-11
Rolling Stock EN 50155:2007
Shock IEC 61373
Freefall IEC60068-2-32
Vibration IEC 61373
Wandal resistance EN 62262, IK10 level
  • Minimalne wymagania systemowe
CPU Pentium 4, 2.4 GHz
Memory 512 MB of memory
OS Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Bowser Internet Explorer 9.x or above
Multimedia DirectX 9.0c or above
  • Software Development Kit
VPort SDK PLUS Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (latest version available on Moxa website)
Standard ONVIF PrifileS
